Screw-in pieces for tension springs
Screw-in pieces for tension springs from stock
Our screw-in pieces for tension springs are used when the loops of normal tension springs cannot withstand the required load. The lifetime of the tension springs can be significantly increased, often increased many times over, by using screw-in pieces. Application: Cut off the loops and screw in the screw-in piece. If the load is very high, we recommend welding the parts or, in extreme cases, securing the spring on the outside with a pipe clip.
Quantity discounts can be viewed by clicking on the item number. Delivery usually takes place on the same day if the items are in stock and the order is placed before 3 pm. If you know the item number, you can enter it in the search field in the upper left corner to get directly to the item.
Find the right dimensions using the filters. If the desired size is not in stock, please contact us, we will be glad to help you.
Products

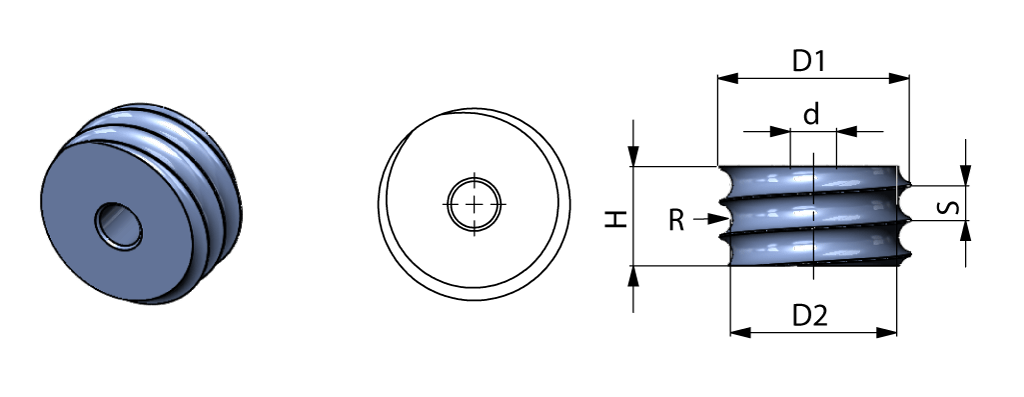

Part Number | Description | Hole Thread d | Outer Diameter D1 mm | Thread Base Diameter D2 mm | Total Height H mm | Profile Radius R mm | Pitch S mm | Fits for Spring: | Material | Stock | Cart | Requisiton List | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 16.3 - 71 | 14 - 64 | |||||||||||||
| EST-201 | Screw-in Piece | M6 | 16.3 | 14.0 | 8.5 | 1.45 | 3.0 | 20/1 + 20/7 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-211 | Screw-in Piece | M6 | 18.6 | 16.0 | 10.0 | 1.65 | 3.4 | 21/1 + 21/7 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-251 | Screw-in Piece | M8 | 19.0 | 15.0 | 15.0 | 2.60 | 5.3 | 25/1 + 25/7 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-221 | Screw-in Piece | M8 | 20.9 | 18.0 | 11.0 | 1.85 | 3.8 | 22/1 + 22/7 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-202 | Screw-in Piece | M6 | 21.9 | 19.6 | 8.5 | 1.45 | 3.0 | 20/2 + 20/8 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-231 | Screw-in Piece | M8 | 23.2 | 20.0 | 12.0 | 2.05 | 4.3 | 23/1 + 23/7 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-252 | Screw-in Piece | M8 | 24.0 | 20.0 | 15.0 | 2.60 | 5.3 | 25/2 + 25/8 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-212 | Screw-in Piece | M6 | 25.0 | 22.4 | 10.0 | 1.65 | 3.4 | 21/2 + 21/8 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-203 | Screw-in Piece | M6 | 27.5 | 25.2 | 8.5 | 1.45 | 3.0 | 20/3 + 20/9 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-222 | Screw-in Piece | M8 | 28.1 | 25.2 | 11.0 | 1.85 | 3.8 | 22/2 + 22/8 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-261 | Screw-in Piece | M10 | 29.0 | 24.0 | 18.0 | 3.10 | 6.4 | 26/1 | Galvanized steel | pcs Add to Cart | Add to Requisiton List | ||||
| EST-253 | Screw-in Piece | M10 | 30.5 | 26.5 | 15.0 | 2.60 | 5.3 | 25/3 + 25/9 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-232 | Screw-in Piece | M8 | 31.2 | 28.0 | 12.0 | 2.05 | 4.3 | 23/2 + 23/8 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-213 | Screw-in Piece | M6 | 31.4 | 28.8 | 10.0 | 1.65 | 3.4 | 21/3 + 21/9 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-204 | Screw-in Piece | M6 | 33.1 | 30.8 | 8.5 | 1.45 | 3.0 | 20/4 + 20/10 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-271 | Screw-in Piece | M10 | 34.0 | 28.0 | 21.0 | 3.60 | 7.5 | 27/1 | Galvanized steel | pcs Add to Cart | Add to Requisiton List | ||||
| EST-262 | Screw-in Piece | M10 | 35.0 | 30.0 | 18.0 | 3.10 | 6.4 | 26/2 | Galvanized steel | pcs Add to Cart | Add to Requisiton List | ||||
| EST-223 | Screw-in Piece | M8 | 35.3 | 32.4 | 11.0 | 1.85 | 3.8 | 22/3 + 22/9 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-214 | Screw-in Piece | M6 | 37.8 | 35.2 | 10.0 | 1.65 | 3.4 | 21/4 + 21/10 | 1.4305 | pcs Add to Cart | Add to Requisiton List | ||||
| EST-301 | Screw-in Piece | M12 | 38.0 | 30.0 | 30.0 | 5.10 | 10.5 | 30/1 | Galvanized steel | pcs Add to Cart | Add to Requisiton List | ||||
Didn't find the product you were looking for? Configure now!
Simply adapt our products with the configurator, download the newly created CAD file and create a quotation request. We will then be pleased to check your settings for you.
To Configurator
