Spiral springs
Spiral springs from stock
1.4310 stainless steel
Compared to motor springs, spiral springs have a distance between the coils and are suitable for a smaller number of turns. Correctly mounted, the springs work without friction. The standard springs are made of stainless-steel strip with rounded edges for an optimum lifetime. At the maximum angle of rotation, the lifetime is a maximum of 10 000 cycles. At 80% of the permissible angle of rotation, the lifetime increases to 100 000 cycles. The tolerances for the positions between the inner and outer end are ±10 degrees for springs with 5 coils, or ±15 degrees for springs with 8 coils.
Quantity discounts can be viewed by clicking on the item number. Delivery usually takes place on the same day if the items are in stock and the order is placed before 3 pm. If you know the item number, you can enter it in the search field in the upper left corner to get directly to the item.
Find the right dimensions using the filters. If the desired size is not in stock, please contact us, we will be glad to help you.
Products

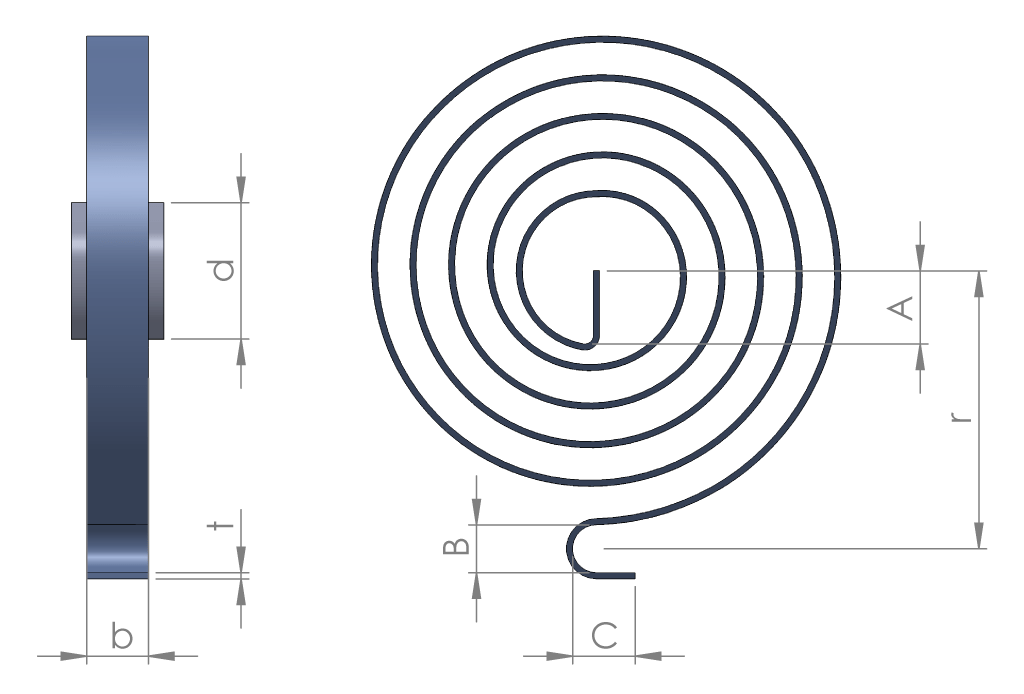

Part Number | Description | Band Thickness t mm | Band Width b mm | Inner End Length A mm | Radius r mm | Number of Turns n pcs | Outer End Diameter B mm | Outer End Length C mm | Shaft Diameter d mm | Power per Degree R Nmm/deg | Maximum Rotation Angle 10'000 cycles α deg | Maximum Torque 10'000 cycles Mn Nmm | Maximum Rotation Angle 100'000 cycles α deg | Maximum Torque 100'000 cycles Mn Nmm | Material | Stock | Cart | Requisiton List | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 13 - 90 | 0.26 - 232.00 | 262 - 986 | 198 - 60750 | 210 - 789 | 158 - 48600 | |||||||||||||||
| SPF-0900 | Coil spring | 0.50 | 3 | 2.5 | 13 | 5 | 2.7 | 3.5 | 7 | 0.56 | 354 | 198 | 284 | 158 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0902 | Coil spring | 0.50 | 3 | 2.5 | 21 | 8 | 2.7 | 3.5 | 7 | 0.26 | 762 | 198 | 610 | 158 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0901 | Coil spring | 0.50 | 5 | 2.5 | 13 | 5 | 2.7 | 3.5 | 7 | 0.93 | 354 | 329 | 284 | 263 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0903 | Coil spring | 0.50 | 5 | 2.5 | 21 | 8 | 2.7 | 3.5 | 7 | 0.43 | 762 | 329 | 610 | 263 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0904 | Coil spring | 0.60 | 4 | 3.0 | 16 | 5 | 3.2 | 4.5 | 8 | 0.90 | 415 | 374 | 332 | 300 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0906 | Coil spring | 0.60 | 4 | 3.0 | 25 | 8 | 3.2 | 4.5 | 8 | 0.43 | 862 | 374 | 690 | 300 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0905 | Coil spring | 0.60 | 6 | 3.0 | 16 | 5 | 3.2 | 4.5 | 8 | 1.35 | 415 | 562 | 332 | 449 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0907 | Coil spring | 0.60 | 6 | 3.0 | 25 | 8 | 3.2 | 4.5 | 8 | 0.65 | 862 | 562 | 690 | 449 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0908 | Coil spring | 0.70 | 4 | 3.5 | 19 | 5 | 3.7 | 5.0 | 10 | 1.43 | 354 | 506 | 283 | 405 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0910 | Coil spring | 0.70 | 4 | 3.5 | 29 | 8 | 3.7 | 5.0 | 10 | 0.67 | 761 | 506 | 609 | 405 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0909 | Coil spring | 0.70 | 7 | 3.5 | 19 | 5 | 3.7 | 5.0 | 10 | 2.50 | 354 | 886 | 283 | 709 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0911 | Coil spring | 0.70 | 7 | 3.5 | 29 | 8 | 3.7 | 5.0 | 10 | 1.16 | 761 | 886 | 609 | 709 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0912 | Coil spring | 0.80 | 5 | 4.5 | 21 | 5 | 4.2 | 6.0 | 12 | 1.79 | 456 | 816 | 364 | 653 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0914 | Coil spring | 0.80 | 5 | 4.5 | 34 | 8 | 4.2 | 6.0 | 12 | 0.83 | 986 | 816 | 789 | 653 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0913 | Coil spring | 0.80 | 8 | 4.5 | 21 | 5 | 4.2 | 6.0 | 12 | 2.87 | 456 | 1306 | 364 | 1044 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0915 | Coil spring | 0.80 | 8 | 4.5 | 34 | 8 | 4.2 | 6.0 | 12 | 1.32 | 986 | 1306 | 789 | 1044 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0916 | Coil spring | 1.00 | 6 | 5.0 | 25 | 5 | 5.2 | 7.0 | 14 | 4.00 | 375 | 1500 | 300 | 1200 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0918 | Coil spring | 1.00 | 6 | 5.0 | 40 | 8 | 5.2 | 7.0 | 14 | 1.86 | 805 | 1500 | 644 | 1200 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0917 | Coil spring | 1.00 | 10 | 5.0 | 25 | 5 | 5.2 | 7.0 | 14 | 6.66 | 375 | 2500 | 300 | 2000 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
| SPF-0919 | Coil spring | 1.00 | 10 | 5.0 | 40 | 8 | 5.2 | 7.0 | 14 | 3.10 | 805 | 2500 | 644 | 2000 | Special spring steel | pcs Add to Cart | Add to Requisiton List | ||||
