Die springs small series

Yellow

pagethumbnail_51445

Our die springs according to ISO 10243 are made of special spring wire with a rectangular cross section, whereby a higher spring force is achieved than with conventional compression springs. The structurally identical force classes are divided into different colours and are designed to fit dimensionally into the specified bores or on the specified axes. The following tolerances apply: Spring rate ± 10%, length L0 ± 1% and min. ± 0.75mm. The Bordignon brand guarantees maximum quality and service life.

Quantity discounts can be viewed by clicking on the item number. Delivery usually takes place on the same day if the items are in stock and the order is placed before 3 pm. If you know the item number, you can enter it in the search field in the upper left corner to get directly to the item.

Find the right dimensions using the filters. If the desired size is not in stock, please contact us, we will be glad to help you.

Products

0%

Part Number
Description

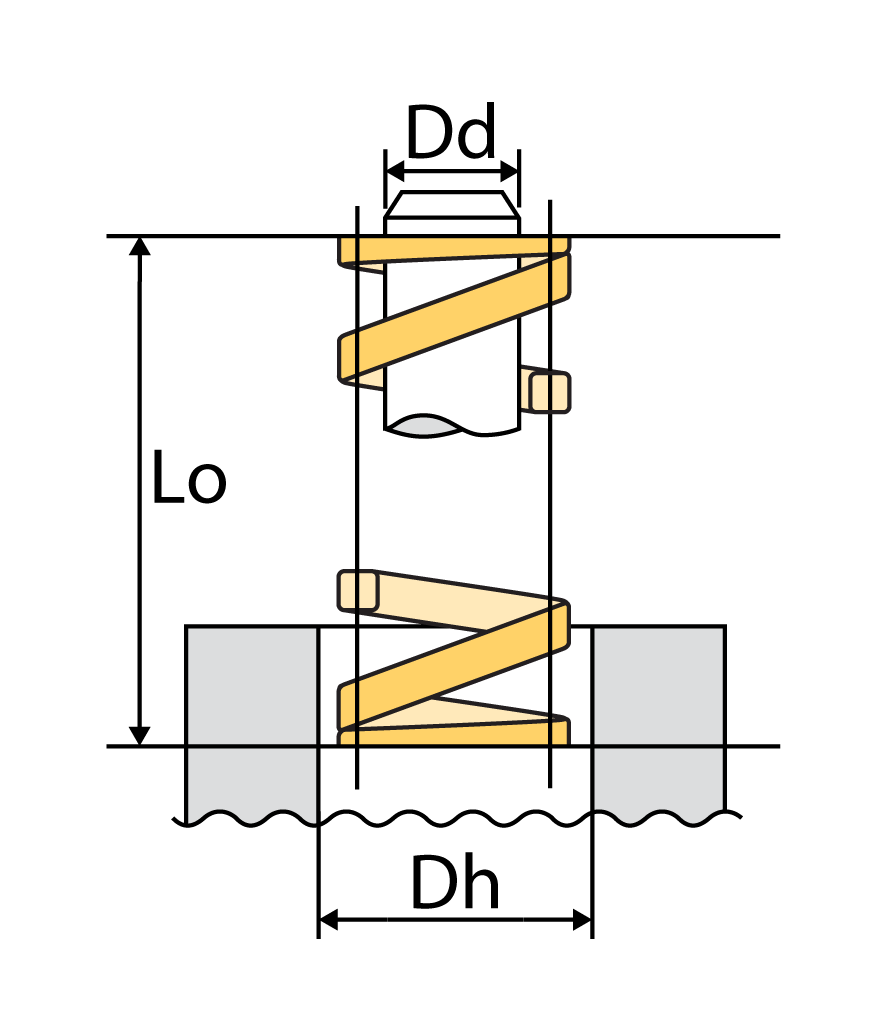

Hole Diameter
Dh
mm
Largest Mandrel Diameter
Dd
mm
Unloaded Spring Length
L0
mm
Thickness Ø
d
mm
Outer Diameter
D
mm
Total Number of Coils
nt
pcs
Increase in Force
R
N/mm
Maximum Spring Deflection
s2
mm
Compression Force at s2
F2
N
Stock
Cart
Requisiton List

HG06016Small series6.53.0161.24.87.7534.776209
pcs
Add to Cart
Add to Requisiton List
HG06025Small series6.53.0251.24.811.2517.6710177
pcs
Add to Cart
Add to Requisiton List
HG06038Small series6.53.0381.24.816.5013.1616211
pcs
Add to Cart
Add to Requisiton List
HG06051Small series6.53.0511.24.822.208.9419170
pcs
Add to Cart
Add to Requisiton List
HG08016Small series8.54.5161.56.56.2042.536255
pcs
Add to Cart
Add to Requisiton List
HG08025Small series8.54.5251.56.59.7525.208202
pcs
Add to Cart
Add to Requisiton List
HG08038Small series8.54.5381.56.514.4015.7512189
pcs
Add to Cart
Add to Requisiton List
HG08051Small series8.54.5511.56.519.2511.2216180
pcs
Add to Cart
Add to Requisiton List
