Druckfedern
Unsere Norm-Druckfedern fertigen wir gemäss DIN EN 15800 Gütegrad 2. Die Federn sind rechtsgewickelt, die Endwindungen sind angelegt, und ab einer Drahtstärke von 0,5mm geschliffen. Die Federn sind nicht gesetzt, das heisst, sie können vor dem ersten Drücken auf Block etwas länger sein als «Lo». Über 1000 Druckfedern, aus patentiert gezogenem Federstahl oder aus rostfreiem Material 1.4310 liegen für Sie versandbereit am Lager.
Mengenrabatte können Sie einsehen, indem Sie auf die Artikelnummer klicken. Die Lieferung erfolgt in der Regel noch am selben Tag, wenn die Artikel auf Lager sind und die Bestellung vor 15:00 Uhr aufgegeben wird. Wenn Sie die Artikelnummer kennen, können Sie diese im Suchfeld oben links eingeben, um direkt zum Artikel zu gelangen.
Finden Sie die richtigen Abmessungen mit Hilfe der Filter. Für den Fall, dass die richtige Größe nicht auf Lager ist, kontaktieren Sie uns bitte .

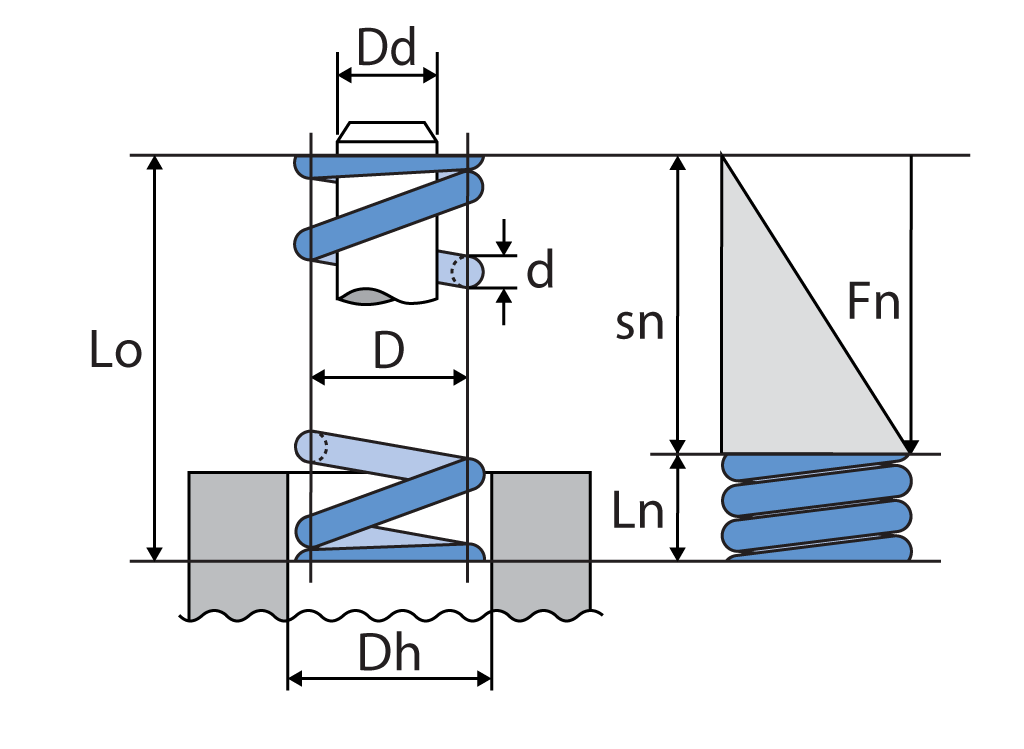

Produkte
Referenz
Beschreibung
Drahtstärke
d
mm
mittlerer Windungsdurchmesser
D
mm
Aussendurchmesser
De
mm
grösster Dorndurchmesser
Dd
mm
kleinster Hülsendurchmesser
Dh
mm
Federlänge ungespannt
L0
mm
Kraftzunahme
R
N/mm
Anzahl wirksame Windungen +2=nt
n
pcs
minimale Federlänge bei Fn
Ln
mm
maximaler Federweg bei Fn
sn
mm
maximale Federkraft bei Ln
Fn
N
Werkstoff
Vorrat
Warenkorb
Bestellliste
- 0.1 0.12 0.16 0.2 0.25 0.28 0.32 0.4 0.45 0.5 0.56 0.63 0.7 0.8 0.9 1 1.1 1.25 1.4 1.6 1.8 2 2.25 2.5 2.8 3.2 3.6 4 4.5 5 6.3 8 10 12
0.1 - 12
- 0.5 0.63 0.8 1 1.2 1.4 1.6 1.82 2 2.24 2.25 2.3 2.5 2.8 3 3.2 3.3 3.36 3.5 3.6 3.75 4 4.2 4.48 4.5 4.8 5 5.2 5.3 5.4 5.5 5.6 6 6.3 6.6 6.75 7 7.1 7.2 7.5 7.7 7.9 8 8.2 8.4 8.7 8.75 8.8 9 10 10.5 10.8 10.9 11 11.2 11.25 11.3 11.5 11.7 12 12.5 13 13.5 13.6 13.8 14 14.4 15 16 16.5 17 17.5 17.7 18 18.2 18.5 19 19.8 20 21 22 22.4 22.5 24 25 27 27.4 28 28.5 29 29.8 30 31 32 32.7 33.75 34 35 36 37.5 40 42 43.5 44.8 45 47 47.7 48 50 52 54 56 60 63 65 67.5 69 70 70.7 73 75 80 85 95 100 105 109 110 113 115 120 125 174
0.5 - 174
- 0.6 0.73 0.75 0.9 0.92 0.96 1.1 1.12 1.16 1.2 1.3 1.32 1.36 1.4 1.45 1.68 1.72 1.76 1.8 1.85 1.92 2.1 2.16 2.2 2.25 2.32 2.4 2.52 2.7 2.75 2.8 2.82 2.9 3 3.08 3.2 3.36 3.45 3.52 3.6 3.7 3.78 3.8 3.83 3.92 3.93 4 4.05 4.2 4.32 4.4 4.48 4.5 4.63 4.8 4.9 4.95 5.04 5.12 5.3 5.4 5.43 5.5 5.63 5.8 6 6.05 6.16 6.3 6.4 6.6 6.75 6.8 6.93 7.1 7.2 7.3 7.55 7.56 7.6 7.7 7.83 8 8.1 8.3 8.4 8.63 8.7 8.8 8.96 9 9.15 9.25 9.45 9.6 9.63 9.8 9.9 10.7 10.8 11 11.2 11.25 11.53 11.6 12 12.1 12.2 12.5 12.6 12.95 13.5 13.6 13.75 14.1 14.4 14.5 14.7 15 15.4 15.5 15.75 16 16.2 16.8 17 17.25 17.6 18 18.5 18.9 18.95 19.2 19.8 20.25 20.5 21.5 21.6 22 22.4 22.5 23 23.2 24 24.3 24.75 25 25.2 25.6 27 27.5 28.2 28.8 29 30 30.25 30.8 31 32 32.6 33 34 34.5 35.2 36 37 37.8 38.3 39 39.6 40 40.5 42 43.2 44 44.8 45 46 46.3 48 48.6 49 49.5 51.2 52 54 55 56.3 57.6 58 60 60.5 62 64 68 69.3 71 72 73 75 77 80 81 85 86.3 87 88 90 97 101.3 107 108 110 115.3 117 118 123 127 128 135 184
0.6 - 184
- 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 2.05 2.2 2.3 2.4 2.5 2.6 2.8 2.9 3.1 3.2 3.3 3.5 3.6 3.75 3.8 4 4.1 4.2 4.5 4.6 4.7 4.8 5 5.1 5.2 5.3 5.7 5.8 5.9 6.2 6.3 6.4 6.5 6.6 6.7 6.8 7.2 7.5 7.8 7.9 8.2 8.4 8.6 9.1 9.2 9.3 9.4 9.8 9.9 10 10.3 10.6 10.7 10.9 11.9 12 12.2 12.9 13.3 13.4 13.6 13.8 14.1 14.6 15.1 15.4 15.5 16 16.2 16.9 17 17.3 17.4 17.7 17.8 18.8 19 19.4 19.5 20 20.4 21.2 21.6 21.8 22.3 24.3 24.4 24.6 24.7 24.8 25 26.1 27 27.1 27.8 28.5 30.4 30.6 31.1 31.2 31.4 32.8 33.9 34.1 35 35.8 37.9 39 39.3 40 40.2 41 42.7 43.5 43.8 44.8 48.9 50 50.1 51.8 53.8 54.5 55.3 56.6 60 61.2 63 68.2 68.6 70 70.4 72.1 80 86.6 88 90 100 109.3 112.6 160
0.3 - 160
- 0.8 0.9 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.9 2.1 2.2 2.4 2.5 2.6 2.7 2.8 3 3.1 3.2 3.3 3.5 3.7 3.8 3.9 4 4.1 4.2 4.3 4.4 4.5 4.8 4.9 5 5.1 5.2 5.3 5.4 5.7 5.8 5.9 6 6.1 6.2 6.25 6.4 6.5 6.6 6.7 6.8 7 7.1 7.4 7.5 7.6 7.7 7.8 7.9 8.1 8.2 8.3 8.4 8.6 8.7 8.9 9 9.3 9.4 9.5 9.6 9.8 9.9 10 10.1 10.2 10.4 10.5 10.6 11.4 11.5 11.6 11.7 12 12.1 12.3 12.6 12.7 12.8 12.9 13 13.3 14 14.1 14.2 14.3 14.4 14.7 14.9 15.2 15.3 15.4 15.5 15.7 16.2 16.3 16.4 16.9 17 17.1 17.2 17.4 17.5 18 18.5 18.6 18.7 18.8 18.9 19.3 19.9 20 20.1 20.5 20.6 20.8 21 21.1 21.5 21.6 21.7 21.8 22.3 22.4 22.5 23 23.1 23.2 23.4 23.5 23.6 23.7 24 24.1 24.2 24.8 25.5 25.6 25.8 26 26.1 26.4 27.1 27.7 27.8 28 28.6 28.8 29.1 29.2 29.9 30.2 30.8 31 31.5 31.6 31.7 31.9 32.5 33.6 33.7 33.8 34.5 35 35.5 36.5 36.7 36.8 37 37.3 37.7 38.2 39.3 39.4 40.5 40.9 41 41.7 42 42.1 43.5 45.2 45.3 45.6 45.7 46.3 46.4 46.7 46.8 47.5 48.5 49.1 49.2 50.4 50.5 50.6 51 51.2 53.4 53.5 54 56 56.4 56.5 56.9 57 57.8 57.9 59.3 59.4 59.8 59.9 60 61.3 62.6 62.7 62.8 64 66.7 66.8 66.9 70.7 70.8 70.9 71.6 71.7 72.8 72.9 74.6 74.7 74.8 77 78 80 83.9 84 84.1 84.5 88 89.5 89.6 90 90.5 90.6 90.7 92 92.1 92.2 100 105.3 105.6 105.9 110 111.7 111.8 113.1 113.2 120 121 123 128 130 133.1 133.2 133.4 139.4 139.5 193
0.8 - 193
- 1 1.2 1.4 1.5 1.6 1.7 1.9 2 2.1 2.2 2.3 2.4 2.6 2.7 2.9 3 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4 4.2 4.3 4.4 4.6 4.7 4.9 5 5.1 5.2 5.3 5.4 5.5 5.8 5.9 6 6.1 6.2 6.3 6.4 6.5 6.6 6.7 6.8 6.9 7 7.1 7.2 7.3 7.4 7.5 7.6 7.7 7.8 7.9 8 8.1 8.2 8.3 8.4 8.5 8.6 8.7 8.8 9 9.1 9.2 9.3 9.4 9.5 9.6 9.7 9.8 10 10.1 10.3 10.5 10.6 10.7 10.9 11 11.1 11.4 11.5 11.6 11.7 11.8 11.9 12 12.1 12.2 12.4 12.5 12.6 12.8 12.9 13 13.1 13.2 13.3 13.5 13.6 13.7 14 14.1 14.2 14.3 14.5 14.6 14.8 14.9 15 15.2 15.5 15.6 15.7 15.8 16 16.1 16.2 16.4 16.6 16.9 17 17.1 17.3 17.4 17.5 17.7 17.8 17.9 18 18.1 18.2 18.3 18.4 18.5 18.7 18.8 19 19.5 19.6 19.8 20 20.1 20.3 20.4 20.5 20.6 20.8 20.9 21 21.1 21.4 21.5 21.8 22 22.2 22.4 22.5 22.6 22.9 23 23.3 23.4 23.5 23.6 24 24.3 24.5 24.7 25 25.1 25.3 25.4 25.5 25.8 25.9 26 26.2 26.3 26.5 26.6 26.8 27 27.5 27.6 27.7 27.8 27.9 28 28.1 28.4 28.5 28.6 29 29.2 29.3 29.5 29.6 30 30.3 30.5 30.6 30.7 30.8 31 31.1 31.4 31.5 31.9 32 32.3 32.5 32.7 33 33.1 33.4 33.5 33.8 34 34.1 34.4 34.5 34.6 35 35.2 35.4 35.5 35.6 35.7 35.8 36 36.5 36.6 37 37.1 37.4 37.5 37.7 37.8 38 38.5 38.6 38.9 39 39.1 40 40.1 40.5 40.7 40.9 41 41.5 41.6 41.7 41.8 41.9 42 42.4 42.5 43 43.2 43.4 43.5 44 44.3 44.5 45 45.1 45.5 45.7 46 46.4 47 47.2 47.4 47.5 47.6 47.9 48 49 49.4 49.5 49.6 50 50.9 51 51.5 51.7 52.4 52.5 52.6 52.9 53 53.4 53.5 54 54.4 54.5 54.7 55 55.5 56 56.2 56.7 56.8 57 57.9 58 58.5 58.8 59 59.3 59.4 59.7 60 60.5 61 61.5 61.6 61.7 62 62.5 62.8 62.9 63 63.1 63.5 63.6 64 64.1 64.3 65 65.5 65.7 66 66.3 67.1 67.5 68 69 70 70.5 71 71.5 72 72.8 73.4 73.5 74 74.5 74.9 75 75.4 75.5 76 76.5 76.7 77 77.5 78 79 79.5 80 80.3 80.5 80.7 81.3 81.5 81.8 82 83.5 83.8 84 84.2 85 85.1 86.1 86.9 87 87.5 87.7 88 88.4 88.5 89.5 89.6 90 90.5 90.9 92 92.4 93 93.4 93.5 93.6 94 94.5 95 95.5 95.6 96 96.5 97 97.2 98 98.2 98.5 98.6 99 99.4 100 101 102 103 104 105 107 109 110 111 112 113 114 115 116 117 118 120 121 122 123 125 128 129 130 131 132 133 135 136 138 139 140 141 143 144 145 147 148 150 152 153 155 156 157 159 160 161 162 163 165 168 169 170 171 172 173 175 176 178 180 182 185 187 190 192 194 195 196 197 199 200 203 204 205 206 207 208 211 215 217 219 220 225 230 235 237 239 240 242 243 245 250 253 255 257 258 260 263 267 273 275 276 278 280 282 283 285 288 290 295 298 300 304 305 312 315 324 330 335 340 345 349 360 362 365 367 368 370 374 385 390 395 400 405 408 410 420 430 435 450 465 471 475 485 490 492 500 507 516 528 540 550 570 580 585 600 610 630 690 720 725 730 740 785 835 840 1015 1080 1160
1 - 1160
- 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.11 0.12 0.13 0.14 0.15 0.16 0.17 0.18 0.19 0.20 0.21 0.22 0.23 0.24 0.25 0.26 0.27 0.28 0.29 0.30 0.31 0.32 0.33 0.34 0.35 0.36 0.37 0.38 0.39 0.40 0.41 0.42 0.43 0.44 0.45 0.46 0.47 0.48 0.49 0.50 0.51 0.52 0.53 0.54 0.55 0.56 0.57 0.58 0.59 0.60 0.61 0.62 0.63 0.64 0.65 0.66 0.67 0.68 0.69 0.70 0.71 0.72 0.73 0.74 0.75 0.76 0.77 0.78 0.79 0.80 0.81 0.82 0.83 0.84 0.85 0.86 0.87 0.88 0.89 0.90 0.91 0.92 0.93 0.94 0.95 0.96 0.97 0.98 0.99 1.00 1.01 1.02 1.03 1.04 1.05 1.06 1.07 1.08 1.09 1.10 1.11 1.12 1.13 1.14 1.15 1.16 1.17 1.18 1.19 1.20 1.21 1.23 1.24 1.25 1.26 1.27 1.28 1.29 1.30 1.31 1.32 1.33 1.34 1.35 1.36 1.37 1.38 1.39 1.41 1.43 1.44 1.45 1.46 1.47 1.48 1.49 1.50 1.51 1.52 1.53 1.54 1.55 1.56 1.57 1.58 1.59 1.60 1.61 1.62 1.63 1.64 1.65 1.66 1.68 1.69 1.70 1.71 1.72 1.73 1.74 1.75 1.76 1.77 1.78 1.79 1.80 1.81 1.82 1.83 1.84 1.85 1.86 1.87 1.89 1.91 1.92 1.93 1.94 1.95 1.97 1.98 1.99 2.00 2.02 2.03 2.04 2.05 2.06 2.07 2.09 2.10 2.12 2.13 2.14 2.15 2.16 2.17 2.18 2.20 2.21 2.22 2.24 2.25 2.27 2.28 2.29 2.30 2.31 2.32 2.33 2.34 2.35 2.36 2.37 2.38 2.39 2.40 2.41 2.42 2.43 2.45 2.46 2.47 2.48 2.49 2.51 2.52 2.53 2.54 2.55 2.57 2.59 2.61 2.62 2.63 2.64 2.65 2.66 2.67 2.68 2.69 2.70 2.71 2.72 2.75 2.76 2.77 2.78 2.82 2.84 2.85 2.86 2.87 2.88 2.92 2.93 2.94 2.95 2.97 2.98 2.99 3.00 3.01 3.03 3.04 3.05 3.06 3.09 3.10 3.11 3.12 3.13 3.14 3.16 3.18 3.20 3.21 3.22 3.23 3.24 3.26 3.27 3.28 3.29 3.30 3.31 3.32 3.33 3.34 3.35 3.36 3.38 3.39 3.40 3.42 3.44 3.47 3.48 3.49 3.51 3.52 3.54 3.55 3.56 3.59 3.60 3.63 3.64 3.65 3.66 3.67 3.69 3.71 3.72 3.73 3.74 3.75 3.76 3.77 3.82 3.85 3.86 3.87 3.90 3.91 3.93 3.94 3.95 3.96 3.99 4.00 4.04 4.05 4.08 4.09 4.10 4.11 4.15 4.17 4.18 4.19 4.20 4.24 4.25 4.27 4.29 4.30 4.32 4.33 4.34 4.35 4.40 4.42 4.43 4.46 4.47 4.48 4.54 4.55 4.57 4.58 4.59 4.60 4.62 4.65 4.66 4.67 4.69 4.70 4.71 4.72 4.73 4.78 4.79 4.80 4.81 4.82 4.83 4.87 4.88 4.90 4.93 4.94 4.97 5.02 5.03 5.09 5.10 5.12 5.14 5.15 5.16 5.17 5.21 5.22 5.24 5.25 5.26 5.27 5.28 5.29 5.30 5.31 5.34 5.37 5.38 5.40 5.41 5.43 5.44 5.47 5.50 5.52 5.54 5.56 5.57 5.59 5.60 5.65 5.70 5.72 5.73 5.74 5.75 5.77 5.80 5.83 5.84 5.86 5.87 5.89 5.90 5.96 5.97 5.98 6.00 6.01 6.03 6.04 6.08 6.09 6.11 6.14 6.17 6.18 6.19 6.21 6.22 6.25 6.29 6.31 6.37 6.41 6.42 6.47 6.48 6.52 6.55 6.56 6.59 6.64 6.67 6.71 6.72 6.75 6.76 6.80 6.83 6.84 6.87 6.91 6.93 6.94 6.96 6.98 7.04 7.07 7.09 7.10 7.13 7.15 7.20 7.21 7.22 7.26 7.28 7.29 7.30 7.32 7.38 7.39 7.40 7.43 7.45 7.47 7.49 7.59 7.60 7.63 7.72 7.73 7.77 7.78 7.82 7.89 7.90 7.91 7.98 7.99 8.01 8.02 8.08 8.09 8.10 8.17 8.18 8.19 8.20 8.23 8.30 8.31 8.34 8.35 8.36 8.39 8.41 8.45 8.49 8.53 8.54 8.59 8.68 8.74 8.75 8.79 8.86 8.88 8.89 8.95 8.96 9.01 9.02 9.07 9.08 9.10 9.13 9.17 9.18 9.20 9.23 9.29 9.32 9.34 9.37 9.39 9.41 9.42 9.44 9.45 9.49 9.54 9.57 9.60 9.63 9.65 9.83 9.86 9.88 9.97 10.05 10.18 10.19 10.24 10.26 10.30 10.33 10.43 10.44 10.45 10.48 10.50 10.51 10.54 10.57 10.59 10.60 10.61 10.62 10.68 10.74 10.75 10.82 10.86 10.87 11.02 11.05 11.08 11.09 11.11 11.13 11.14 11.18 11.22 11.43 11.44 11.46 11.50 11.52 11.60 11.68 11.71 11.73 11.74 11.77 11.78 11.81 11.93 11.95 11.96 12.00 12.02 12.06 12.08 12.14 12.15 12.20 12.21 12.41 12.43 12.45 12.51 12.52 12.53 12.56 12.63 12.70 12.73 12.83 12.84 12.87 12.92 12.93 12.96 13.04 13.05 13.12 13.14 13.18 13.27 13.28 13.35 13.42 13.43 13.50 13.51 13.53 13.59 13.64 13.74 13.83 13.92 13.96 14.07 14.08 14.18 14.21 14.26 14.30 14.33 14.50 14.56 14.58 14.60 14.64 14.71 14.76 14.91 14.99 15.04 15.09 15.20 15.27 15.44 15.46 15.53 15.64 15.78 15.81 15.82 15.93 15.96 15.97 16.02 16.16 16.20 16.29 16.30 16.35 16.36 16.38 16.40 16.43 16.59 16.68 16.69 16.90 16.93 17.09 17.18 17.28 17.36 17.50 17.59 17.63 17.67 17.70 17.73 17.76 17.77 17.95 17.97 18.00 18.16 18.20 18.31 18.37 18.45 18.58 18.63 18.64 18.69 18.74 18.77 18.98 19.02 19.19 19.29 19.32 19.33 19.41 19.62 19.65 19.67 19.73 19.75 19.76 19.95 20.17 20.18 20.30 20.37 20.48 20.76 20.86 20.87 20.91 20.97 20.99 21.02 21.09 21.24 21.36 21.44 21.47 21.56 21.71 21.73 21.75 22.15 22.16 22.88 22.91 22.94 23.00 23.32 23.36 23.43 23.49 23.55 23.62 23.71 23.85 23.89 23.92 23.99 24.05 24.12 24.40 24.43 24.48 24.86 24.88 25.17 25.20 25.30 25.41 25.46 25.71 25.74 25.77 26.07 26.09 26.17 26.24 26.28 26.42 26.55 26.64 26.84 26.87 27.01 27.05 27.16 27.18 27.35 27.48 27.77 27.93 28.30 28.58 28.59 28.60 29.19 29.20 29.29 29.30 29.40 29.52 29.68 29.82 29.86 30.10 30.29 30.51 30.53 30.84 30.87 30.92 31.57 31.64 32.40 32.62 32.79 32.80 32.86 33.05 33.14 33.18 33.33 33.37 33.38 33.55 34.17 34.21 34.35 34.73 34.81 35.09 35.18 35.46 35.55 36.40 36.43 36.64 36.91 37.16 37.27 37.49 37.54 38.39 38.59 38.65 39.10 39.42 39.46 39.51 39.56 39.60 39.93 40.84 41.13 41.71 41.75 42.17 42.47 42.51 42.71 42.72 42.93 42.94 42.97 43.41 43.81 44.18 44.32 44.48 44.57 45.07 45.28 45.87 46.15 46.20 46.72 46.86 46.93 47.71 47.78 47.97 47.98 48.11 48.23 48.24 49.73 50.92 51.52 51.61 52.07 52.14 52.46 52.48 52.71 53.03 53.09 53.67 54.00 54.33 54.37 55.86 57.20 57.97 58.40 58.57 59.64 59.73 61.07 61.44 62.93 64.17 65.60 66.35 66.36 66.74 67.09 67.17 67.30 68.71 69.42 70.78 70.83 71.16 72.08 74.36 74.53 74.55 74.97 75.09 77.18 79.12 79.76 80.95 81.47 83.43 83.96 84.34 85.43 85.76 85.88 89.59 91.60 93.71 93.86 95.96 96.47 98.88 103.19 104.27 104.29 105.43 106.18 109.39 116.85 117.12 117.14 119.27 125.34 125.67 131.94 132.54 132.73 140.72 140.79 143.95 149.09 166.86 171.90 187.43 194.22 208.28 208.57 221.13 234.29 305.20
0.03 - 305.20
- 3.5 3.50 5.5 5.50 7.5 8.5 8.50 9.5 11.5 12.5 12.50 13.50 18.5 18.50
- 0.78 0.79 0.80 0.82 0.85 0.93 0.94 0.95 0.97 1.02 1.03 1.05 1.08 1.12 1.21 1.23 1.24 1.25 1.28 1.29 1.34 1.36 1.38 1.40 1.43 1.47 1.53 1.54 1.57 1.60 1.61 1.62 1.63 1.64 1.66 1.67 1.70 1.74 1.77 1.85 1.86 1.88 1.90 1.93 1.96 1.99 2.00 2.01 2.06 2.08 2.09 2.12 2.14 2.16 2.17 2.18 2.19 2.20 2.21 2.22 2.23 2.25 2.29 2.31 2.33 2.36 2.42 2.43 2.44 2.46 2.48 2.50 2.52 2.53 2.56 2.61 2.64 2.66 2.67 2.69 2.72 2.77 2.79 2.83 2.88 2.89 2.90 2.94 2.96 2.99 3.02 3.03 3.04 3.06 3.08 3.09 3.10 3.12 3.14 3.18 3.19 3.20 3.21 3.23 3.25 3.27 3.28 3.29 3.31 3.35 3.37 3.39 3.40 3.42 3.43 3.45 3.47 3.48 3.50 3.51 3.52 3.54 3.56 3.59 3.60 3.61 3.62 3.67 3.70 3.73 3.76 3.77 3.78 3.79 3.81 3.82 3.86 3.90 3.91 3.92 3.94 3.96 3.98 3.99 4.00 4.02 4.03 4.06 4.08 4.09 4.12 4.15 4.16 4.17 4.19 4.20 4.23 4.24 4.25 4.26 4.28 4.29 4.34 4.35 4.37 4.39 4.40 4.43 4.46 4.47 4.50 4.52 4.53 4.58 4.59 4.60 4.61 4.62 4.68 4.69 4.72 4.73 4.74 4.82 4.85 4.86 4.87 4.92 4.93 4.94 4.98 5.01 5.02 5.03 5.06 5.08 5.10 5.13 5.15 5.16 5.18 5.20 5.24 5.26 5.27 5.29 5.34 5.41 5.42 5.43 5.44 5.45 5.46 5.47 5.52 5.54 5.59 5.61 5.65 5.72 5.75 5.77 5.81 5.82 5.85 5.89 5.92 5.97 5.98 6.01 6.02 6.04 6.06 6.08 6.09 6.11 6.13 6.14 6.17 6.19 6.22 6.23 6.24 6.25 6.27 6.29 6.35 6.36 6.40 6.41 6.45 6.46 6.52 6.55 6.61 6.62 6.63 6.69 6.70 6.72 6.75 6.77 6.81 6.83 6.90 6.91 6.96 6.97 7.00 7.01 7.04 7.11 7.12 7.13 7.14 7.15 7.17 7.18 7.19 7.21 7.29 7.31 7.43 7.44 7.45 7.48 7.54 7.55 7.56 7.58 7.59 7.62 7.63 7.68 7.69 7.70 7.74 7.75 7.83 7.84 7.85 7.99 8.00 8.02 8.04 8.05 8.08 8.10 8.11 8.17 8.23 8.27 8.28 8.31 8.37 8.38 8.39 8.43 8.48 8.49 8.50 8.53 8.56 8.59 8.62 8.65 8.68 8.69 8.73 8.74 8.76 8.77 8.87 8.93 8.94 8.99 9.03 9.04 9.15 9.20 9.23 9.25 9.31 9.33 9.44 9.45 9.48 9.49 9.59 9.61 9.64 9.67 9.68 9.69 9.76 9.79 9.80 9.87 9.91 9.94 9.95 9.98 9.99 10.02 10.06 10.10 10.11 10.13 10.26 10.31 10.34 10.38 10.39 10.41 10.47 10.51 10.56 10.58 10.59 10.62 10.63 10.66 10.69 10.78 10.79 10.83 10.87 10.90 11.01 11.05 11.09 11.11 11.12 11.22 11.24 11.27 11.30 11.36 11.41 11.46 11.48 11.50 11.52 11.61 11.64 11.69 11.71 11.83 11.84 11.87 11.90 11.91 11.93 11.94 12.01 12.04 12.10 12.14 12.16 12.17 12.18 12.23 12.25 12.26 12.28 12.32 12.41 12.45 12.48 12.51 12.58 12.60 12.73 12.74 12.78 12.79 12.84 12.89 12.95 13.05 13.07 13.19 13.20 13.22 13.24 13.36 13.38 13.40 13.48 13.50 13.54 13.55 13.59 13.60 13.67 13.72 13.73 13.75 13.77 13.84 13.90 14.02 14.04 14.06 14.10 14.12 14.20 14.23 14.32 14.35 14.38 14.40 14.46 14.48 14.56 14.70 14.71 14.74 14.80 14.81 14.84 14.95 15.00 15.03 15.05 15.09 15.11 15.12 15.13 15.14 15.16 15.21 15.30 15.35 15.41 15.42 15.47 15.52 15.60 15.63 15.76 15.79 15.85 15.96 15.99 16.00 16.08 16.16 16.18 16.34 16.44 16.47 16.55 16.60 16.70 16.71 16.74 16.89 16.90 16.91 16.93 17.00 17.01 17.05 17.06 17.09 17.17 17.24 17.34 17.49 17.59 17.65 17.70 17.72 17.79 17.81 17.84 17.89 17.94 18.02 18.08 18.13 18.19 18.28 18.36 18.74 18.76 18.84 18.87 18.88 18.89 18.90 18.91 18.94 18.97 19.05 19.17 19.20 19.31 19.49 19.52 19.53 19.54 19.56 19.62 19.68 19.76 19.85 19.91 20.00 20.12 20.16 20.19 20.22 20.34 20.41 20.57 20.77 20.83 20.87 20.94 21.01 21.05 21.16 21.17 21.27 21.32 21.48 21.50 21.51 21.52 21.56 21.63 21.66 21.70 21.86 21.93 22.02 22.16 22.18 22.26 22.32 22.38 22.45 22.48 22.54 22.67 22.92 22.96 22.99 23.00 23.12 23.28 23.29 23.34 23.35 23.45 23.59 23.60 23.62 23.69 23.76 23.82 23.96 24.02 24.09 24.14 24.18 24.24 24.28 24.35 24.36 24.39 24.43 24.59 24.75 24.91 24.95 24.97 25.08 25.14 25.39 25.43 25.48 25.51 25.67 25.76 25.86 26.04 26.09 26.22 26.24 26.37 26.44 26.45 26.48 26.52 26.56 26.65 26.66 26.83 26.85 26.95 26.99 27.00 27.02 27.11 27.32 27.57 27.60 27.64 27.96 28.03 28.05 28.12 28.25 28.27 28.29 28.49 28.63 28.67 28.70 28.88 28.90 29.09 29.23 29.43 29.50 29.56 29.66 29.77 29.81 29.93 29.94 29.95 30.10 30.11 30.18 30.24 30.31 30.45 30.48 30.52 30.57 30.68 30.87 31.12 31.13 31.16 31.46 31.76 31.82 31.83 31.86 31.93 32.07 32.09 32.18 32.24 32.25 32.67 32.78 32.80 32.99 33.10 33.25 33.33 33.41 33.61 33.71 33.85 33.86 33.99 34.03 34.19 34.26 34.28 34.38 34.54 34.59 34.85 35.35 35.59 35.61 35.67 35.73 35.81 35.89 36.31 36.36 36.60 36.77 36.85 37.28 37.32 37.39 37.42 37.55 37.58 37.66 37.67 37.72 37.77 37.90 37.93 37.97 38.14 38.20 38.23 38.29 38.41 38.50 38.86 38.88 38.97 39.13 39.16 39.85 40.02 40.13 40.17 40.20 40.30 40.38 40.44 40.61 40.72 40.91 41.24 41.31 41.54 41.66 41.99 42.03 42.10 42.20 42.24 42.32 42.33 42.41 42.54 42.74 42.89 43.01 43.11 43.15 43.88 43.94 44.15 44.16 44.43 44.60 44.63 44.64 44.84 45.29 45.44 45.74 45.77 45.82 45.85 46.16 46.47 46.60 46.98 46.99 47.06 47.12 47.38 47.42 47.71 47.81 47.90 48.10 48.35 48.55 48.58 48.60 48.69 48.76 48.98 49.09 49.65 49.79 50.28 50.54 50.76 50.82 51.25 51.50 51.98 52.17 52.34 52.36 52.42 52.74 52.88 53.05 53.11 53.18 53.61 53.68 53.88 53.99 54.29 54.50 54.80 54.99 55.11 55.59 56.21 56.35 56.50 56.84 56.87 57.04 57.18 57.19 57.56 57.70 57.84 58.12 58.35 58.71 58.82 59.23 59.40 59.57 59.66 59.73 60.00 60.09 60.19 60.21 60.33 60.47 60.83 60.86 60.89 61.20 61.52 61.73 62.14 62.75 62.83 63.33 63.49 63.89 64.03 64.34 64.35 64.85 65.14 65.31 65.48 65.93 66.06 66.36 66.39 66.57 66.98 67.09 67.24 67.32 67.68 67.75 68.17 68.24 68.83 69.61 70.10 70.23 70.94 70.97 71.34 71.46 72.00 72.32 72.42 72.49 73.10 73.49 73.80 74.00 74.09 74.36 74.59 74.67 75.05 75.13 75.15 75.16 75.34 75.46 75.60 76.43 76.53 76.78 76.98 77.22 77.55 78.12 79.59 79.82 79.96 80.31 80.68 81.02 81.60 82.04 82.94 83.10 83.11 83.57 84.15 84.45 84.81 84.88 85.26 85.52 86.01 86.16 86.75 87.56 88.63 88.68 89.13 90.19 90.37 91.07 91.41 91.97 92.12 92.79 93.11 93.74 93.77 93.82 94.14 94.35 95.26 95.97 96.68 97.12 97.60 99.77 100.10 100.35 101.07 101.12 101.47 102.17 102.85 103.40 103.55 104.41 104.57 104.64 104.78 105.85 106.29 106.84 107.21 107.25 107.36 109.28 110.21 110.56 111.62 113.78 114.09 114.22 114.99 115.94 117.21 117.47 118.15 118.85 119.09 120.63 121.20 121.35 122.19 122.84 126.34 126.67 126.78 127.72 129.03 129.39 130.31 130.40 130.53 132.22 132.51 133.95 134.10 134.50 135.95 136.16 138.42 141.65 141.83 143.69 144.96 146.14 148.67 148.99 150.09 152.63 152.64 155.34 157.00 158.90 159.11 160.40 161.04 162.91 163.41 165.67 166.02 166.13 169.82 170.23 174.75 176.98 180.67 181.38 182.95 184.97 185.27 187.27 187.52 188.39 189.85 192.73 193.49 195.13 195.89 201.92 214.41 229.67 230.58 231.46 235.54 242.29 252.28 267.88
0.78 - 267.88
- 0.22 0.27 0.38 0.41 0.46 0.47 0.49 0.50 0.56 0.60 0.62 0.66 0.67 0.70 0.76 0.77 0.81 0.82 0.85 0.87 0.88 0.95 0.98 1.00 1.04 1.07 1.08 1.15 1.16 1.18 1.19 1.20 1.21 1.22 1.24 1.32 1.33 1.34 1.35 1.37 1.41 1.43 1.44 1.45 1.47 1.50 1.52 1.54 1.55 1.56 1.62 1.64 1.65 1.68 1.69 1.74 1.75 1.77 1.78 1.81 1.82 1.83 1.86 1.88 1.91 1.92 1.95 1.96 1.98 2.01 2.03 2.04 2.09 2.10 2.11 2.17 2.19 2.20 2.22 2.27 2.28 2.29 2.30 2.31 2.33 2.34 2.37 2.38 2.39 2.42 2.44 2.46 2.48 2.53 2.58 2.59 2.68 2.69 2.70 2.73 2.75 2.78 2.80 2.81 2.84 2.88 2.90 2.93 2.94 2.95 2.96 2.98 2.99 3.00 3.06 3.07 3.10 3.17 3.20 3.30 3.36 3.37 3.40 3.46 3.48 3.51 3.53 3.56 3.61 3.63 3.65 3.71 3.72 3.73 3.74 3.77 3.78 3.80 3.81 3.86 3.89 3.90 3.93 4.04 4.05 4.08 4.12 4.13 4.19 4.22 4.24 4.26 4.27 4.29 4.30 4.31 4.32 4.38 4.41 4.43 4.47 4.49 4.51 4.52 4.55 4.56 4.57 4.60 4.61 4.62 4.64 4.65 4.66 4.69 4.70 4.71 4.73 4.76 4.79 4.82 4.87 5.01 5.05 5.09 5.10 5.14 5.16 5.17 5.18 5.19 5.21 5.22 5.26 5.29 5.43 5.48 5.52 5.55 5.57 5.65 5.75 5.76 5.81 5.82 5.86 5.90 5.96 5.97 5.99 6.01 6.03 6.04 6.05 6.06 6.13 6.14 6.17 6.23 6.29 6.31 6.33 6.34 6.35 6.37 6.38 6.40 6.43 6.44 6.53 6.55 6.57 6.63 6.64 6.66 6.69 6.71 6.73 6.80 6.86 6.88 6.91 7.04 7.06 7.07 7.13 7.14 7.17 7.26 7.31 7.36 7.38 7.40 7.44 7.47 7.48 7.49 7.50 7.53 7.54 7.56 7.59 7.62 7.63 7.64 7.71 7.78 7.79 7.80 7.86 7.87 7.91 7.93 7.97 8.06 8.07 8.09 8.14 8.20 8.22 8.31 8.33 8.46 8.47 8.50 8.54 8.61 8.68 8.69 8.70 8.75 8.83 8.84 8.89 9.01 9.16 9.26 9.27 9.30 9.31 9.32 9.35 9.37 9.39 9.41 9.49 9.50 9.55 9.58 9.65 9.70 9.79 9.80 9.81 9.88 9.89 9.94 9.97 10.00 10.03 10.05 10.07 10.08 10.11 10.13 10.15 10.20 10.23 10.25 10.26 10.31 10.35 10.45 10.59 10.60 10.65 10.69 10.75 10.76 10.82 10.84 10.90 10.91 10.98 11.01 11.04 11.07 11.10 11.15 11.17 11.35 11.37 11.40 11.41 11.48 11.50 11.59 11.67 11.74 11.78 11.83 11.87 11.88 12.01 12.03 12.07 12.08 12.16 12.17 12.20 12.23 12.29 12.31 12.32 12.45 12.49 12.55 12.60 12.62 12.65 12.71 12.87 12.91 12.97 13.00 13.13 13.32 13.36 13.44 13.45 13.48 13.58 13.60 13.65 13.78 13.79 13.86 13.88 13.96 14.02 14.05 14.10 14.19 14.21 14.26 14.29 14.34 14.36 14.37 14.41 14.43 14.58 14.73 14.74 14.80 14.87 14.90 14.91 14.93 14.98 15.00 15.04 15.06 15.22 15.26 15.31 15.33 15.39 15.44 15.52 15.53 15.58 15.61 15.63 15.69 15.71 15.75 15.88 15.90 16.07 16.12 16.13 16.18 16.25 16.30 16.51 16.61 16.62 16.67 16.89 16.90 16.95 17.01 17.08 17.25 17.35 17.41 17.46 17.49 17.65 17.85 17.88 17.95 18.07 18.08 18.14 18.17 18.41 18.44 18.46 18.48 18.50 18.53 18.61 18.63 18.69 18.76 18.77 18.78 18.87 18.92 18.99 19.12 19.17 19.25 19.30 19.31 19.44 19.48 19.49 19.52 19.74 19.76 19.77 19.81 19.84 19.93 19.95 20.11 20.39 20.40 20.45 20.48 20.65 20.72 20.73 20.79 20.90 20.99 21.07 21.09 21.28 21.32 21.33 21.35 21.59 21.74 22.05 22.11 22.12 22.16 22.20 22.24 22.27 22.33 22.42 22.48 22.51 22.59 22.63 22.64 22.66 22.72 22.75 22.80 22.84 22.91 22.98 23.02 23.15 23.23 23.25 23.26 23.30 23.33 23.61 23.66 23.69 23.72 23.89 24.21 24.33 24.46 24.59 24.75 24.97 24.98 25.01 25.03 25.05 25.23 25.28 25.36 25.39 25.54 25.75 25.82 25.89 25.91 26.08 26.22 26.31 26.56 26.57 26.59 26.64 26.67 26.72 26.75 26.79 26.89 26.92 26.98 27.05 27.06 27.11 27.63 27.66 27.72 27.86 27.96 28.02 28.11 28.15 28.22 28.44 28.47 28.53 28.59 28.79 28.81 29.07 29.08 29.26 29.42 29.52 29.58 29.65 29.86 29.90 29.91 30.13 30.15 30.23 30.24 30.26 30.46 30.54 30.68 30.74 30.75 30.86 30.90 31.06 31.17 31.27 31.29 31.51 31.77 31.81 31.84 31.90 32.00 32.26 32.37 32.44 32.68 32.75 32.80 32.82 32.88 32.90 32.93 33.11 33.31 33.38 34.24 34.43 34.46 34.52 34.57 34.67 34.68 34.81 34.90 35.14 35.16 35.38 35.68 35.73 35.77 35.90 36.00 36.06 36.10 36.13 36.59 36.64 36.69 36.72 36.86 36.89 37.15 37.22 37.37 37.43 37.67 37.94 38.01 38.14 38.16 38.27 38.94 39.02 39.12 39.23 39.41 39.53 39.64 39.69 39.88 39.98 40.01 40.18 40.35 40.46 40.63 40.83 40.84 40.99 41.09 41.18 41.20 41.36 41.46 41.78 41.79 41.95 42.00 42.52 42.65 42.68 42.76 42.84 43.06 43.07 43.40 43.41 43.42 43.75 43.94 44.01 44.03 44.06 44.41 44.52 44.55 44.96 44.99 45.34 45.35 45.41 45.65 46.01 46.34 46.51 46.60 46.90 47.10 47.25 47.28 47.30 47.46 47.48 47.51 47.56 47.58 47.59 47.75 47.79 48.59 48.93 49.13 49.45 49.83 50.10 50.27 50.41 50.50 50.68 50.82 50.84 50.85 51.22 51.46 51.74 51.82 51.91 52.00 52.13 52.15 52.35 52.36 52.40 52.87 52.93 53.82 54.31 54.59 54.78 55.32 55.37 55.83 55.84 56.07 56.11 56.28 56.43 56.48 56.84 57.09 57.21 57.24 57.41 57.62 58.19 58.41 59.45 59.52 59.53 59.60 59.66 59.84 59.88 59.89 60.49 60.71 60.76 61.24 61.41 61.48 61.50 61.60 61.62 61.80 62.05 62.12 62.54 62.82 62.83 62.93 63.23 63.44 63.47 63.64 63.74 64.06 64.34 64.54 64.62 64.74 64.87 65.06 65.25 66.01 66.19 66.40 67.09 67.11 67.48 67.54 68.10 68.18 68.26 68.42 68.49 68.58 69.28 69.48 69.54 69.63 69.74 69.91 70.22 70.77 70.97 71.02 71.17 72.15 72.22 72.28 72.54 73.04 73.17 73.75 74.00 74.84 75.12 76.12 76.24 76.77 76.90 76.99 77.20 77.26 78.57 78.80 78.86 79.40 79.92 80.15 80.42 80.50 80.91 80.98 81.51 81.60 81.83 82.41 83.17 83.18 83.44 83.71 83.84 84.42 84.59 85.14 85.36 85.98 86.31 86.39 87.04 87.25 88.00 88.01 88.05 88.22 88.44 88.85 89.47 89.55 89.56 89.73 90.43 90.65 92.76 93.11 93.81 94.29 94.82 94.89 95.04 95.44 96.24 96.52 96.76 97.16 97.49 98.02 98.18 98.33 98.79 98.80 99.39 99.46 100.22 101.14 101.77 101.96 102.26 102.59 102.91 103.08 103.19 103.54 103.75 103.83 104.44 105.65 105.75 107.40 108.05 108.66 109.01 109.19 109.44 110.03 111.12 111.85 112.42 112.78 113.91 114.17 114.87 116.10 116.16 116.18 116.39 117.01 117.61 118.30 119.33 119.74 120.23 120.58 120.69 122.45 122.96 123.65 123.71 124.39 124.65 128.10 129.15 129.40 129.72 131.33 131.37 131.51 132.04 132.67 132.82 132.94 133.17 133.23 133.72 134.82 135.19 136.14 138.02 138.67 139.18 139.97 140.76 140.88 140.90 141.26 142.26 142.40 142.50 142.73 142.75 143.96 146.61 146.99 147.96 149.02 149.24 151.71 152.88 153.56 153.59 155.04 157.19 157.28 159.33 160.60 160.76 161.94 162.45 162.65 163.50 164.05 164.07 164.70 164.88 168.84 169.23 169.71 170.64 170.97 174.46 175.15 175.32 176.32 176.59 176.68 177.65 178.65 183.53 184.95 185.02 185.78 191.37 196.01 196.89 197.58 198.99 199.53 199.72 199.78 199.81 203.39 205.68 207.66 207.76 207.91 211.84 212.27 212.36 213.17 214.79 217.21 217.67 218.23 218.98 219.55 221.22 221.23 223.15 228.38 233.43 236.12 238.89 239.69 240.30 240.33 241.51 242.16 243.32 250.12 251.11 254.11 258.63 259.85 260.41 265.32 268.35 272.16 282.79 283.66 286.69 289.44 292.25 296.00 297.72 300.86 302.54 304.45 318.99 323.03 325.36 329.81 337.89 340.89 341.05 350.37 369.03 371.15 379.15 382.64 384.87 386.61 392.78 398.08 400.03 419.91 427.65 435.01 450.50 463.87 477.73 483.33 502.48 550.18 579.60 580.04 587.37 620.59 641.31 658.62 747.12 850.33 929.42
0.22 - 929.42
- 0.26 0.27 0.30 0.31 0.32 0.34 0.35 0.37 0.38 0.43 0.44 0.45 0.50 0.51 0.53 0.54 0.59 0.63 0.64 0.65 0.66 0.68 0.73 0.76 0.78 0.80 0.81 0.83 0.86 0.94 0.98 1.00 1.01 1.02 1.03 1.04 1.13 1.14 1.18 1.19 1.20 1.24 1.25 1.27 1.28 1.30 1.33 1.36 1.38 1.40 1.45 1.49 1.51 1.52 1.55 1.56 1.57 1.58 1.62 1.64 1.67 1.82 1.83 1.84 1.85 1.87 1.88 1.89 1.92 1.93 1.96 1.98 1.99 2.07 2.16 2.17 2.19 2.20 2.22 2.25 2.35 2.37 2.38 2.39 2.43 2.57 2.58 2.60 2.63 2.64 2.65 2.67 2.71 2.76 2.79 2.80 2.82 2.84 2.86 2.87 2.89 2.91 2.92 2.93 2.95 2.96 2.97 3.02 3.03 3.05 3.08 3.12 3.15 3.20 3.23 3.24 3.26 3.29 3.34 3.42 3.46 3.53 3.63 3.72 3.85 3.86 3.89 3.92 3.93 3.97 4.01 4.03 4.05 4.07 4.08 4.11 4.13 4.14 4.24 4.43 4.54 4.72 4.83 4.84 4.88 4.91 4.94 4.97 5.05 5.06 5.07 5.08 5.09 5.16 5.19 5.20 5.28 5.48 5.53 5.61 5.64 5.68 5.70 5.71 5.76 5.79 5.81 5.83 5.87 5.88 5.89 5.91 5.93 5.95 5.96 5.98 6.05 6.09 6.11 6.14 6.15 6.17 6.18 6.20 6.21 6.23 6.30 6.31 6.33 6.34 6.47 6.53 6.59 6.64 6.66 6.72 6.79 6.90 6.99 7.00 7.03 7.06 7.08 7.10 7.11 7.13 7.15 7.20 7.22 7.24 7.25 7.33 7.37 7.40 7.43 7.44 7.45 7.48 7.49 7.50 7.53 7.55 7.57 7.58 7.59 7.68 7.69 7.71 7.75 7.84 7.85 7.88 7.89 7.90 7.92 7.93 7.94 7.97 7.98 7.99 8.03 8.04 8.09 8.11 8.19 8.24 8.27 8.34 8.38 8.40 8.42 8.45 8.46 8.50 8.53 8.62 8.64 8.67 8.68 8.80 8.85 8.87 8.92 8.97 9.02 9.03 9.04 9.06 9.07 9.10 9.15 9.16 9.19 9.20 9.23 9.26 9.40 9.41 9.42 9.46 9.47 9.49 9.53 9.58 9.63 9.67 9.75 9.76 9.79 9.84 9.96 10.16 10.17 10.19 10.22 10.28 10.34 10.37 10.40 10.56 10.57 10.58 10.62 10.63 10.64 10.66 10.70 10.82 10.86 10.89 10.91 10.92 10.95 10.99 11.00 11.02 11.05 11.16 11.19 11.22 11.32 11.40 11.43 11.45 11.47 11.54 11.56 11.63 11.65 11.72 11.81 11.86 11.90 11.93 11.94 12.05 12.11 12.22 12.24 12.25 12.27 12.38 12.51 12.52 12.55 12.60 12.69 12.71 12.74 12.80 12.84 12.85 12.87 12.89 12.93 12.94 12.95 12.96 13.03 13.05 13.06 13.08 13.16 13.27 13.32 13.41 13.42 13.54 13.55 13.60 13.73 13.78 13.86 13.88 13.99 14.00 14.03 14.07 14.09 14.15 14.24 14.25 14.30 14.31 14.36 14.39 14.44 14.46 14.53 14.54 14.56 14.59 14.64 14.67 14.72 14.78 14.86 14.87 14.99 15.04 15.06 15.12 15.20 15.22 15.23 15.24 15.27 15.30 15.57 15.59 15.71 15.73 15.75 15.90 15.97 15.99 16.06 16.13 16.17 16.20 16.25 16.26 16.35 16.39 16.52 16.54 16.59 16.63 16.71 16.78 16.79 16.84 16.91 16.98 17.01 17.02 17.04 17.06 17.08 17.11 17.12 17.35 17.39 17.43 17.49 17.55 17.69 17.84 18.10 18.15 18.20 18.21 18.27 18.36 18.51 18.64 18.67 18.68 18.72 18.77 18.78 18.83 18.86 18.88 18.95 18.96 18.99 19.03 19.09 19.12 19.14 19.16 19.28 19.39 19.42 19.43 19.49 19.54 19.60 19.65 19.67 19.69 19.72 19.87 19.92 20.00 20.03 20.18 20.21 20.29 20.33 20.38 20.42 20.43 20.45 20.63 20.79 20.90 20.97 21.03 21.09 21.12 21.30 21.31 21.44 21.47 21.56 21.66 21.78 21.81 21.83 21.96 22.02 22.08 22.09 22.11 22.20 22.22 22.26 22.27 22.31 22.37 22.38 22.46 22.51 22.56 22.67 22.71 22.76 22.79 22.80 22.94 22.95 22.98 23.00 23.02 23.03 23.08 23.09 23.20 23.32 23.38 23.39 23.48 23.73 23.94 24.02 24.03 24.66 24.79 24.97 25.01 25.05 25.12 25.28 25.34 25.57 25.60 25.81 25.85 25.86 25.92 25.93 25.94 26.02 26.07 26.11 26.14 26.20 26.23 26.26 26.27 26.31 26.54 26.66 26.99 27.39 27.50 27.60 27.65 27.66 27.68 27.85 27.87 27.88 28.06 28.14 28.21 28.22 28.23 28.41 28.57 28.71 28.79 28.82 29.00 29.04 29.12 29.22 29.23 29.27 29.36 29.46 29.47 29.55 29.82 29.94 29.95 29.96 29.99 30.09 30.13 30.48 30.54 30.55 30.76 30.89 30.95 30.97 31.05 31.07 31.29 31.32 31.42 31.62 31.67 31.69 31.70 31.91 32.19 32.25 32.34 32.36 32.37 32.60 32.68 32.83 33.10 33.27 33.30 33.41 33.46 33.65 33.91 33.92 34.28 34.33 34.52 34.76 34.79 35.29 35.57 36.16 36.35 36.62 36.71 36.93 37.37 37.40 37.53 37.59 37.65 37.86 38.09 38.10 38.16 38.50 38.93 38.94 39.44 39.72 39.88 40.18 40.24 40.25 40.43 40.59 40.73 40.94 42.02 42.49 43.74 44.17 44.43 44.50 44.65 44.79 45.12 45.14 45.20 45.22 45.61 45.75 46.87 46.99 47.11 47.26 47.60 47.78 48.12 48.20 48.37 48.40 48.47 48.68 48.72 48.74 49.00 49.27 49.42 49.53 49.54 49.62 49.69 49.73 49.91 50.26 50.55 50.81 52.64 52.78 52.91 53.08 53.67 54.06 54.14 54.33 54.34 54.36 54.45 54.67 54.71 54.76 55.04 55.34 55.65 55.86 56.45 56.79 57.08 58.09 58.29 58.59 58.64 58.72 58.79 58.84 58.98 59.28 59.51 59.87 60.54 61.66 62.21 62.33 62.41 62.47 62.58 62.75 65.25 65.48 65.81 65.87 66.03 68.00 69.27 69.88 70.02 70.05 70.11 70.24 70.48 70.62 70.77 71.25 71.79 72.76 72.93 73.08 73.34 73.37 73.84 73.85 74.33 74.46 74.62 75.26 75.45 75.68 75.78 75.98 76.22 76.50 76.71 77.07 77.22 77.38 77.46 77.78 78.39 78.65 78.68 78.89 79.33 79.38 79.49 79.52 79.56 80.03 80.62 80.64 81.73 81.92 82.08 82.38 82.43 82.94 82.95 83.48 83.65 83.82 84.53 84.54 84.75 85.01 85.13 85.62 86.12 86.42 86.74 86.92 87.37 89.11 89.17 89.29 89.37 89.91 90.30 90.56 90.79 90.86 91.02 91.81 91.87 91.88 92.27 92.46 94.87 95.20 96.79 97.13 97.79 98.01 98.06 98.17 98.50 98.61 98.79 98.82 99.57 99.90 100.09 100.53 101.00 101.43 101.99 102.06 102.20 102.24 102.31 102.41 103.13 103.19 103.21 103.65 103.86 105.56 105.71 106.39 106.89 106.94 107.20 107.26 107.50 107.99 108.16 108.21 108.70 109.73 110.10 110.15 110.24 110.27 110.65 110.77 110.97 111.00 111.86 112.22 112.28 112.31 112.82 112.92 112.99 113.07 113.75 114.06 114.56 114.79 114.91 114.92 115.30 115.32 116.01 116.02 116.25 116.90 117.57 118.30 118.74 118.78 118.86 119.26 119.51 120.07 120.26 120.48 120.75 120.88 121.04 121.31 121.48 121.55 122.10 122.62 123.35 123.39 123.83 124.14 125.98 126.03 126.12 126.73 126.92 127.00 127.77 129.08 129.52 129.54 130.31 130.59 131.32 132.07 132.89 133.01 133.42 133.52 133.97 135.03 135.09 135.78 135.96 136.30 136.46 136.79 137.74 138.00 138.56 138.60 139.44 141.00 141.51 141.57 142.88 144.68 145.11 145.94 146.21 146.28 146.29 146.39 146.59 146.84 147.05 147.22 148.59 148.68 148.88 149.41 150.09 150.38 150.65 151.22 151.33 151.68 151.74 152.24 152.32 153.11 153.28 153.65 153.71 154.99 156.66 157.03 158.03 159.04 160.00 160.16 160.17 160.85 162.15 163.00 163.17 164.23 164.31 164.33 164.34 164.43 164.66 164.78 164.95 165.18 165.37 165.53 165.89 166.82 167.01 167.05 167.24 167.35 168.59 168.92 169.23 169.30 169.66 169.86 169.99 170.41 170.44 170.70 171.00 171.10 171.84 171.94 172.86 173.41 174.09 174.22 174.28 175.29 175.32 175.97 176.39 176.61 176.86 177.41 177.49 178.13 178.17 178.64 179.24 179.73 179.91 179.93 180.31 180.68 181.75 182.02 182.13 182.21 182.35 183.29 183.81 184.09 184.60 184.74 185.10 185.31 185.42 185.94 186.34 187.18 187.38 187.64 187.97 187.98 188.72 190.17 190.57 191.42 191.46 191.74 192.13 193.03 193.14 194.18 194.79 195.70 195.77 196.31 196.90 198.66 200.09 200.13 201.33 202.54 202.74 203.16 204.16 204.46 204.48 204.84 205.17 205.66 207.33 208.16 208.28 211.15 211.99 214.60 215.82 216.09 216.20 217.86 218.38 218.97 220.05 220.73 223.23 223.98 224.62 225.05 225.29 228.20 229.08 229.69 230.07 230.47 232.82 232.89 233.47 233.48 234.49 235.46 235.49 235.89 235.97 236.25 236.51 236.70 241.06 241.20 242.73 242.86 244.71 245.11 245.31 245.96 246.11 246.15 246.58 246.65 247.18 247.95 248.04 250.75 251.60 251.73 252.31 252.80 253.06 253.95 254.22 254.27 254.29 254.31 254.34 255.93 256.89 256.96 257.33 257.78 257.94 258.09 258.38 258.43 258.54 258.66 259.30 259.64 259.66 260.15 261.52 262.21 262.27 262.92 263.40 263.81 264.48 264.73 264.98 265.67 266.40 266.75 270.94 271.15 274.97 275.34 275.40 276.09 276.46 276.49 277.07 278.63 282.76 283.24 285.27 285.57 285.59 285.62 285.67 285.70 286.10 287.48 287.55 288.57 288.63 289.58 289.74 290.24 290.41 290.55 291.26 291.66 291.68 292.01 292.22 293.41 293.63 294.54 294.63 299.25 303.33 304.58 308.79 308.87 309.35 310.12 311.07 313.96 314.08 316.49 317.88 317.96 318.16 321.37 322.63 323.00 323.90 328.01 329.58 329.83 330.95 332.90 334.44 335.15 336.57 340.33 340.73 341.77 343.71 346.86 347.61 347.64 349.32 349.42 351.70 351.75 352.66 352.80 354.78 355.50 357.07 357.16 358.17 360.27 362.40 362.97 363.83 365.57 370.61 370.70 371.45 373.95 374.22 374.86 375.67 377.73 378.06 381.98 382.28 382.45 383.91 385.26 386.54 387.65 387.88 388.22 388.47 390.46 392.39 393.39 394.38 395.23 398.51 398.94 399.75 402.33 403.52 404.69 405.31 407.72 410.51 410.63 410.75 414.08 414.10 416.41 420.37 421.07 429.07 429.60 432.76 434.18 435.43 435.70 436.09 436.39 436.53 439.43 439.78 441.89 443.00 443.96 444.32 446.90 448.12 448.44 449.04 450.14 451.32 452.77 453.27 455.28 457.21 458.07 458.96 459.09 459.74 461.12 461.39 462.50 465.15 468.61 468.85 471.32 472.12 472.78 477.00 477.59 479.07 480.74 481.16 488.93 491.02 493.69 495.84 496.40 503.34 503.73 508.60 513.30 513.57 513.77 514.54 515.55 515.69 516.41 518.28 519.51 525.13 526.39 526.65 528.00 529.18 529.42 530.88 531.07 531.67 533.87 535.72 535.81 536.47 538.13 540.01 540.49 541.33 546.96 548.98 549.21 551.28 551.55 555.04 555.43 556.10 556.97 557.49 562.33 562.97 565.04 565.39 566.00 567.22 571.47 572.18 576.36 576.58 577.12 580.38 582.35 582.41 582.79 586.61 589.13 589.87 593.09 595.65 595.99 596.91 597.22 599.68 600.96 603.60 614.39 616.64 619.25 623.90 624.66 626.21 626.49 627.60 631.66 632.38 633.36 634.70 635.78 637.16 641.92 642.73 645.65 647.42 648.30 649.80 650.52 651.94 654.15 654.22 654.65 658.93 661.75 669.09 670.48 682.14 690.01 698.49 699.56 702.06 705.88 708.12 709.70 717.51 719.18 727.82 728.11 728.19 729.90 730.73 732.56 735.08 761.10 766.25 770.98 775.09 784.61 785.06 785.82 788.62 792.85 792.91 793.19 795.34 795.42 797.20 805.97 807.85 811.36 817.22 817.55 817.88 819.59 819.82 822.88 822.94 825.71 826.14 826.16 828.03 833.60 834.57 834.96 836.18 837.07 848.14 853.63 854.93 854.99 857.08 859.17 860.53 862.73 871.09 881.11 881.85 902.99 911.39 920.89 924.40 927.99 928.00 930.12 936.37 937.46 937.90 939.27 940.27 950.47 952.70 953.91 958.87 960.40 965.09 966.04 966.64 969.08 994.20 999.50 1002.94 1010.43 1014.32 1018.53 1024.12 1029.35 1032.56 1036.03 1037.88 1041.47 1048.58 1050.33 1052.27 1054.55 1059.29 1061.34 1063.91 1065.49 1070.76 1074.12 1082.15 1083.84 1110.92 1116.74 1122.72 1126.56 1134.13 1135 1136.84 1144.1 1150.37 1156.26 1159.85 1165.83 1177.87 1179.82 1181.99 1189.89 1192.19 1202.78 1224.82 1236.22 1242.92 1243.48 1253.78 1255.57 1256.85 1263.96 1267.24 1269.38 1277 1308.52 1313.3 1320.05 1323.87 1326.05 1336.02 1339.57 1341.27 1341.9 1344.56 1375.83 1385.58 1388.63 1396.14 1396.78 1407.69 1408.37 1410.35 1411.82 1419.79 1423.48 1425.88 1429.42 1442.24 1463.3 1475.21 1482.8 1489.54 1506.35 1506.46 1507.34 1513.02 1526.6 1538.26 1556.41 1566.99 1567.15 1570.77 1576.17 1581.12 1594.41 1620.06 1624.92 1692.19 1699.56 1727.92 1760.36 1764.44 1770.51 1776.06 1790.98 1806.08 1825.26 1830.07 1842.4 1853.23 1858.06 1870.06 1873.82 1874.6 1878.06 1879.28 1886.77 1888.71 1934.2 1936.69 1951.35 1959.04 1961.67 1983.76 2003.22 2025.17 2028.75 2042.94 2044.6 2055.7 2069.33 2069.54 2087.14 2100.61 2105.7 2109.6 2110.97 2119.42 2121.56 2121.94 2150.04 2172.67 2175.46 2191.92 2203.52 2241.49 2247.85 2277.49 2320.54 2331.97 2337.24 2340.23 2342.71 2356.33 2358.08 2369.53 2507.22 2517.84 2524.98 2558.29 2606.63 2619.49 2625.4 2631.53 2646.84 2648.81 2656.76 2661.65 2691.93 2716.08 2784.4 2784.79 2816.33 2820.3 2824.18 2829.14 2832.48 2848.35 2867.59 2868.1 2878.94 3023.81 3088.01 3110.32 3127.68 3128.11 3137.38 3143.33 3146.11 3166.97 3168.01 3177.94 3181.69 3187.79 3199.52 3221.26 3221.69 3233.88 3345.6 3374 3385.47 3389.02 3389.95 3412.86 3441.42 3449.4 3473.91 3483.87 3493.79 3523.36 3570.59 3591.93 3664.04 3677.74 3727.73 3756.68 3775.56 3789.96 3865.71 3902.2 3913.39 3917.91 3953.81 4034.77 4073.91 4085.54 4104.11 4115.77 4128.5 4175.7 4229.63 4295.58 4400.94 4482.32 4589.23 4591.71 4610.09 4666.87 4767.14 4820.53 4860.59 4878.84 4910.36 4977.9
0.26 - 4977.9
- Spring steel grade C Stainless steel
310/1/1 Compression Spring 0.10 0.50 0.60 0.30 0.80 1.0 2.09 3.50 0.78 0.22 0.45 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/1/2 Compression Spring 0.10 0.50 0.60 0.30 0.80 1.4 1.33 5.50 1.02 0.38 0.50 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/1/3 Compression Spring 0.10 0.50 0.60 0.30 0.80 2.0 0.86 8.50 1.38 0.62 0.54 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/1/4 Compression Spring 0.10 0.50 0.60 0.30 0.80 2.7 0.58 12.50 1.85 0.85 0.50 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/1/5 Compression Spring 0.10 0.50 0.60 0.30 0.80 3.9 0.39 18.50 2.56 1.34 0.53 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/2/1 Compression Spring 0.10 0.63 0.73 0.40 0.90 1.2 1.04 3.50 0.79 0.41 0.43 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/2/2 Compression Spring 0.10 0.63 0.73 0.40 0.90 1.7 0.66 5.50 1.03 0.67 0.44 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/2/3 Compression Spring 0.10 0.63 0.73 0.40 0.90 2.4 0.43 8.50 1.40 1.00 0.43 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/2/4 Compression Spring 0.10 0.63 0.73 0.40 0.90 3.4 0.29 12.50 1.88 1.52 0.44 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/2/5 Compression Spring 0.10 0.63 0.73 0.40 0.90 4.9 0.20 18.50 2.61 2.29 0.45 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/3/1 Compression Spring 0.10 0.80 0.90 0.50 1.10 1.5 0.51 3.50 0.80 0.70 0.35 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/3/2 Compression Spring 0.10 0.80 0.90 0.50 1.10 2.2 0.32 5.50 1.05 1.15 0.37 Stainless steel In den Warenkorb legen
Zu Bestellliste hinzufügen
310/3/3 Compression Spring 0.10 0.80 0.90 0.50 1.10 3.2 0.21 8.50 1.43 1.77 0.37 Stainless steel In den Warenkorb legen
Zu Bestellliste hinzufügen
310/3/4 Compression Spring 0.10 0.80 0.90 0.50 1.10 4.6 0.14 12.50 1.93 2.68 0.38 Stainless steel In den Warenkorb legen
Zu Bestellliste hinzufügen
310/3/5 Compression Spring 0.10 0.80 0.90 0.50 1.10 6.6 0.10 18.50 2.67 3.93 0.38 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/4/1 Compression Spring 0.10 1.00 1.10 0.70 1.40 2.0 0.26 3.50 0.82 1.18 0.31 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/4/2 Compression Spring 0.10 1.00 1.10 0.70 1.40 2.9 0.17 5.50 1.08 1.82 0.30 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/4/3 Compression Spring 0.10 1.00 1.10 0.70 1.40 4.4 0.11 8.50 1.47 2.93 0.31 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/4/4 Compression Spring 0.10 1.00 1.10 0.70 1.40 6.3 0.07 12.50 1.99 4.31 0.31 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
310/4/5 Compression Spring 0.10 1.00 1.10 0.70 1.40 9.2 0.05 18.50 2.77 6.43 0.32 Stainless steel
In den Warenkorb legen
Zu Bestellliste hinzufügen
1 2 3 4 ...97
Gesuchtes Produkt nicht gefunden? Jetzt Konfigurieren!
Adaptieren Sie unsere Produkte einfach mit dem Konfigurator, laden Sie die neu erstellte CAD-Datei herunter und erstellen Sie eine Offertanfrage. Wir prüfen Ihre Einstellungen dann gerne für Sie.
Zum Konfigurator
